Product Name
EC-380 Chime Microphone
Description
The EC-380 is an uniquely shaped and high-quality condenser microphone equipped with a electrical chime and designed for paging applications. With its’ adjustable chime volume, flexible power option of battery or DC, EC-380 is definitely the choice when selecting the a hassle-free plug and play chime microphone.
Specification
| Power Source | 6V DC (4x “AA” batteries) or DC adapter: 9-24V |
|---|---|
| Current Consumption | 13 mA during chime and 6 mA microphone operation |
| Microphone Element | Condenser |
| Polar Pattern | Cardioid |
| Chime Tones | 4-Tone Chime (UP/DOWN) |
| Rated Impedance | 600 Ω, balanced |
| Output | Microphone: -41 dB ±3dB (1 kHz 0 dB=1 V/Pa) Chime Tones: -31 dB ±3dB (maximum position) |
| Frequency Response | 50 Hz – 18,000 Hz |

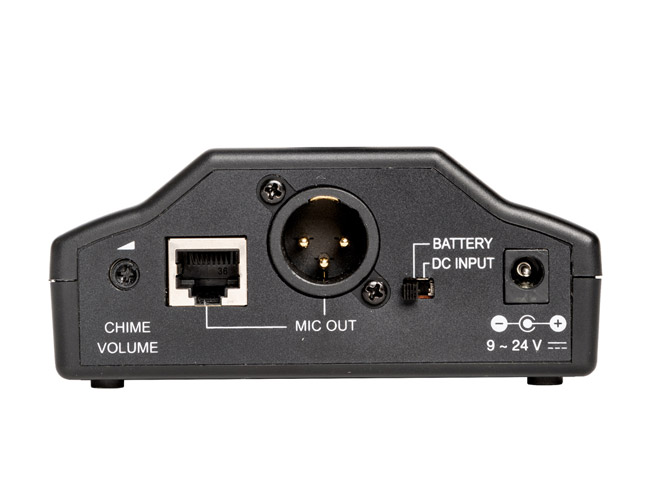

| Output Connector | XLR-3-32 equivalent RJ45: Audio Output, Power Supply and Contact Output |
| Operating Temperature | 0 °C to +40 °C |
| Finish | Stand Mic: ABS resin, black, paint Mic Shaft: Copper alloy, black, paint |
| Dimensions | 110 (W) × 145 (L) x 532 (H) mm |
| Weight | 558 g (exclude batteries) |
| Accessory | Windscreen x 1, XLR Cable Stereo Phone Plug (7.5m) x 1 |
